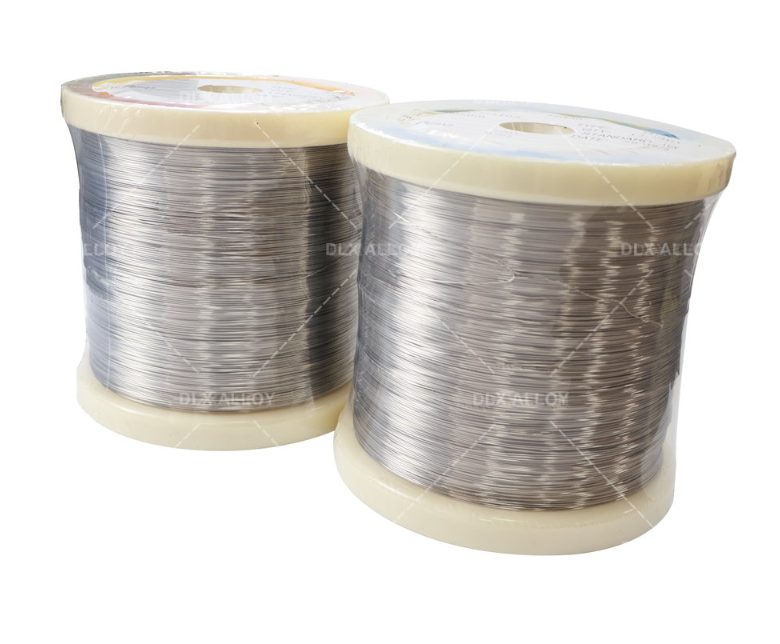

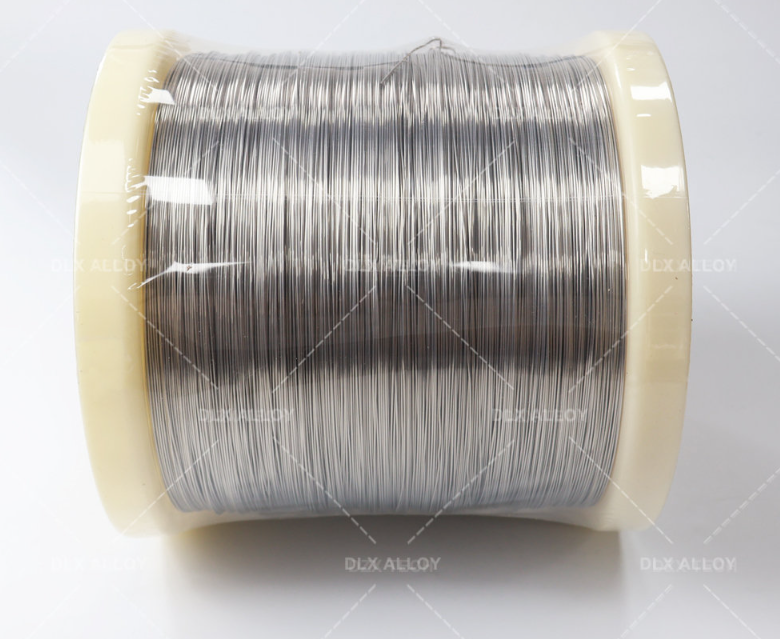

T-Type Thermocouple Bare Wire (Cu-CuNi) for Accurate Lab Temperature Measurement

T-Type thermocouple bare wire, made from Copper (Cu) and Copper-Nickel (CuNi) alloys, is widely regarded for its accuracy and reliability in low-temperature measurements. It is primarily used in laboratories and scientific research applications that require precise temperature monitoring. Known for its excellent sensitivity and stable performance, T-Type thermocouples are well-suited for environments where high accuracy and minimal drift are essential.

This article explores the material composition, applications, and key considerations for using T-Type thermocouple bare wire in laboratory and scientific settings.

Material Composition and Characteristics
T-Type thermocouple wire consists of two alloys:

Positive Leg: Copper (Cu)
Negative Leg: Copper-Nickel (CuNi)
Key Features
Wide Temperature Range: The T-Type thermocouple operates effectively in the temperature range of -200°C to 350°C (-328°F to 662°F), making it ideal for low-temperature measurements.

High Sensitivity: It has an EMF output of approximately 69 µV/°C, offering superior sensitivity and precision for measuring small temperature variations.

Excellent Stability: T-Type thermocouples are known for their stability, maintaining consistent performance over time, even in laboratory conditions where temperature changes can be subtle.

Non-Oxidizing Performance: The copper and copper-nickel combination provides excellent resistance to oxidation at low temperatures, ensuring longevity and accuracy.

Affordable and Accessible: Compared to high-cost thermocouples like platinum-based types, T-Type thermocouples provide a cost-effective solution for labs and research settings.

Applications of T-Type Thermocouple Bare Wire
T-Type thermocouple wire is extensively used in laboratory environments that require precise, reliable, and stable temperature measurements.

1. Laboratory and Research Applications
Cryogenics – Used in low-temperature research, such as in the study of cryogenic fluids and superconductivity.
Biotechnology and Pharmaceuticals – Measures temperature in refrigerators, incubators, and cold storage used for maintaining cultures, enzymes, and medical supplies.
Environmental Testing – Essential for climatic chambers and environmental testing where precise control of temperature is necessary for experiments.
2. Food and Beverage Industry
Temperature Control – Applied in cold storage and refrigeration monitoring to ensure the safety and quality of food products by maintaining the right temperatures during storage and transportation.
Processing – Used for monitoring temperatures in food processing systems such as pasteurization or refrigeration during production.
3. Educational and Industrial Research
Scientific Studies – T-Type thermocouples are commonly used in educational laboratories to demonstrate temperature sensing and measurement principles.
Industrial Quality Control – Applied in temperature calibration processes in industrial settings, where precise temperature measurements are critical for quality assurance.
Meeting Laboratory User Needs
Laboratories and research institutions require accurate, stable, and reliable temperature monitoring. Here are some key factors that should be considered when selecting T-Type thermocouple bare wire for specific applications:

1. Accuracy and Calibration
T-Type thermocouples provide Class 1 accuracy of ±1.5°C or 0.4% of the temperature reading. This high degree of precision is essential in laboratory environments where even small temperature deviations can impact experimental results.

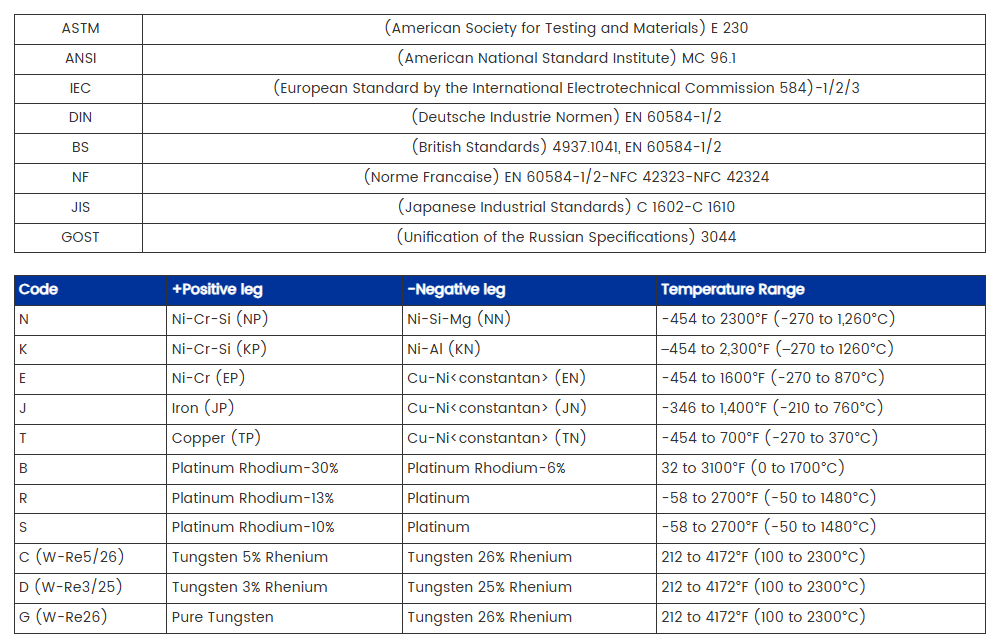

These thermocouples are also available in various calibration standards, including IEC 60584-1, ANSI, and ASTM E230, ensuring that users can find an appropriate calibration based on their needs.

2. Wire Gauge and Insulation
T-Type thermocouples are available in a range of wire gauges (e.g., 0.25mm, 0.5mm, 1.0mm) to accommodate different applications, including both rapid response and slow drift measurements.

Insulation options are available to protect the thermocouple in various environments. For instance, fiberglass insulation offers flexibility and is ideal for general-purpose laboratory settings, while PTFE provides additional protection against higher temperatures and chemical exposure.

3. Environmental Resistance
While T-Type thermocouples are highly stable at low temperatures, they are not suitable for high-temperature applications. Laboratories working in low-temperature ranges (such as cryogenic research) will find T-Type thermocouples to be highly effective. However, for applications where temperatures exceed 350°C, other thermocouple types (such as K-Type or J-Type) may be more appropriate.

Additionally, T-Type thermocouples perform best in non-oxidizing environments and may require protective coatings if used in harsher conditions or areas prone to chemical exposure.
