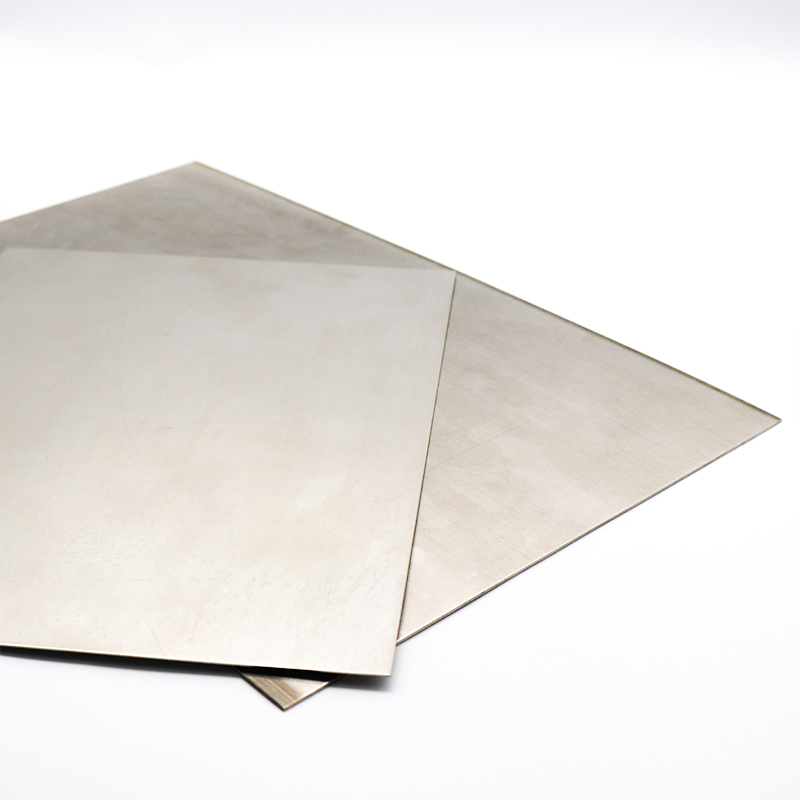

Premium Inconel 600 Sheet – High-Temperature & Corrosion-Resistant

Inconel 600 sheet is a high-performance nickel-chromium-iron alloy known for its outstanding resistance to oxidation, corrosion, and high-temperature environments. It is widely used in industries that require excellent mechanical strength, thermal stability, and superior durability under extreme conditions.

Inconel 600 (UNS N06600) is a nickel-based superalloy with a carefully balanced composition to provide remarkable resistance to both high-temperature oxidation and aqueous corrosion.

Chemical Composition:

• Nickel (Ni): 72% minimum

• Chromium (Cr): 14-17%

• Iron (Fe): 6-10%

• Carbon (C): 0.15% max

• Manganese (Mn): 1.00% max

• Silicon (Si): 0.50% max

• Sulfur (S): 0.015% max

• Copper (Cu): 0.50% max

This unique composition makes Inconel 600 sheets highly resistant to oxidation, stress corrosion cracking, and carburization.

Due to its exceptional thermal and corrosion resistance properties, Inconel 600 sheets are widely used in industries such as aerospace, chemical processing, marine, and power generation.

1. Aerospace & Aviation

• Jet engine components

• Exhaust systems

• Heat shields

2. Chemical Processing

• Heat exchangers

• Reactor vessels

• Caustic handling equipment

3. Marine & Shipbuilding

• Seawater piping

• Heat exchangers in desalination plants

• Corrosion-resistant structures

4. Power Generation & Nuclear Industry

• Steam generators

• Turbine components

• Heat-resistant structural components

5. Automotive & Motorsport

• High-performance exhaust systems

• Turbocharger components

Inconel 600 sheets are available in multiple grades and standards to meet diverse industry requirements:

• ASTM B168 / ASME SB168 (Standard Specification for Nickel-Chromium-Iron Alloys)

• AMS 5540 (Aerospace Material Specification)

• DIN 2.4816 (European Standard for Nickel Alloys)

Standard thicknesses range from 0.5mm to 50mm, with custom thicknesses available upon request.

The production of Inconel 600 sheets involves a meticulous process to ensure high-quality performance in extreme environments.

1. Melting & Alloying: The raw materials are melted in a vacuum induction furnace (VIM) or electric arc furnace (EAF) to ensure precise composition.

2. Hot Rolling: The alloy is processed through high-temperature rolling to achieve the desired thickness.

3. Annealing: To enhance ductility and remove internal stresses, sheets undergo controlled heat treatment.

4. Pickling & Surface Finishing: Acid pickling is used to remove scale, followed by polishing or brushing for smooth surface finishing.

5. Quality Control & Testing: Each sheet undergoes rigorous testing for mechanical properties, corrosion resistance, and dimensional accuracy.

We understand that different industries have specific requirements when selecting high-performance alloys. That’s why we provide:

• Custom Sizes & Thicknesses: Sheets available in standard and customized dimensions.

• Fast Delivery & Global Shipping: Quick turnaround times to meet urgent project needs.

• Expert Technical Support: Our team offers material selection guidance and technical support to ensure optimal performance.

• Certification & Compliance: All Inconel 600 sheets come with material test reports (MTR), and comply with international standards.
