Precision S-Type MI Thermocouple Cable (PtRh10-Pt) for Scientific and High-Accuracy Applications

In scientific research and high-accuracy industrial applications, precise temperature measurement is essential for ensuring optimal performance and reliability. S-Type mineral-insulated (MI) thermocouple cables, made from platinum-rhodium (PtRh10) and platinum (Pt), are designed to provide the highest accuracy and stability in extreme environments. These thermocouples are particularly suited for high-temperature measurements, making them crucial in fields such as metallurgy, research laboratories, and high-precision manufacturing.

In this article, we will explore the material composition, key features, applications, and user requirements that make the S-Type MI thermocouple cable (PtRh10-Pt) the preferred choice for scientific and high-accuracy applications.

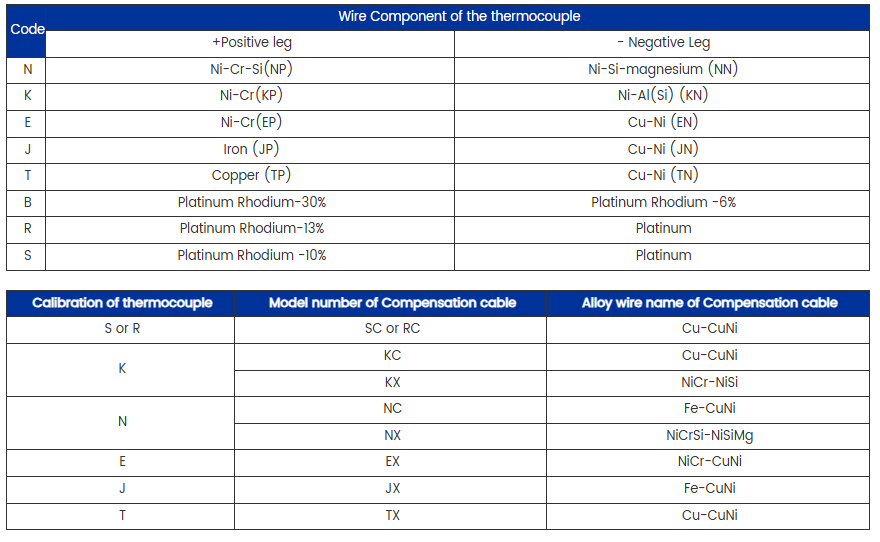

Platinum-Rhodium Alloy (PtRh10)
The S-Type thermocouple uses a platinum-rhodium alloy (PtRh10) for the positive leg, which provides several key advantages:

High Temperature Resistance: PtRh10 is capable of withstanding extremely high temperatures, up to 1600°C (2912°F), making it ideal for high-temperature applications like those in scientific research and industrial testing.
Stable and Accurate Response: Platinum and rhodium offer superior stability and accuracy when subjected to high temperatures. This ensures precise temperature readings over extended periods, which is essential for scientific experiments and critical industrial processes.
Low Drift: The combination of platinum and rhodium results in minimal drift in the thermoelectric voltage, which ensures consistent and reliable temperature measurements in precision applications.
Platinum (Pt)
The negative leg of the S-Type thermocouple is made from pure platinum (Pt), providing the following benefits:

High Stability: Platinum offers excellent stability under high temperatures and in harsh chemical environments, ensuring accurate and consistent measurements.
Corrosion Resistance: Platinum is highly resistant to oxidation and corrosion, which is essential when the thermocouple is used in environments with high humidity, chemicals, or corrosive atmospheres.
Minimal Electromotive Force (EMF) Drift: Platinum is a stable conductor with minimal EMF drift, contributing to the overall precision of the thermocouple system.

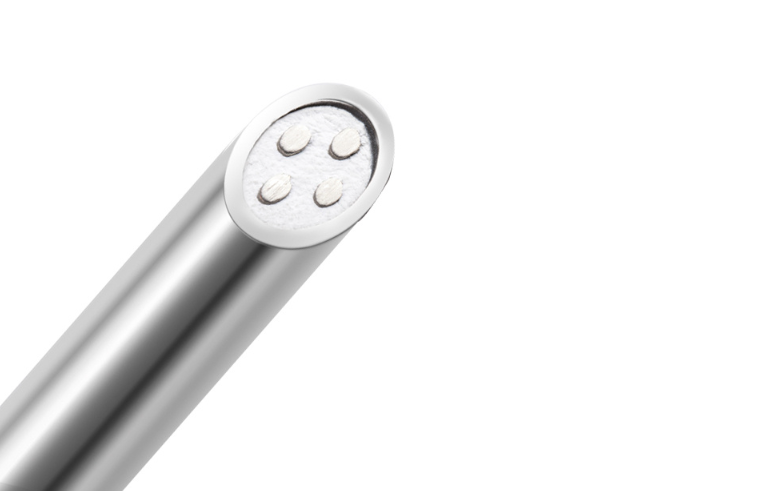

Magnesium Oxide (MgO) Insulation

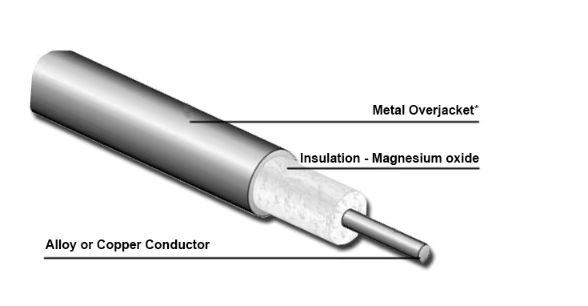

S-Type MI thermocouple cables are insulated with high-purity magnesium oxide (MgO). The MgO insulation offers several critical advantages:

Excellent Thermal Conductivity: MgO ensures rapid heat transfer from the environment to the thermocouple wires, allowing for quick and accurate temperature measurements.
High-Temperature Capability: Magnesium oxide insulation can withstand temperatures up to 950°C (1742°F), ensuring the cable operates reliably in high-temperature environments.
Electrical Insulation: MgO provides effective electrical insulation, preventing short circuits and ensuring the thermocouple operates without interference.

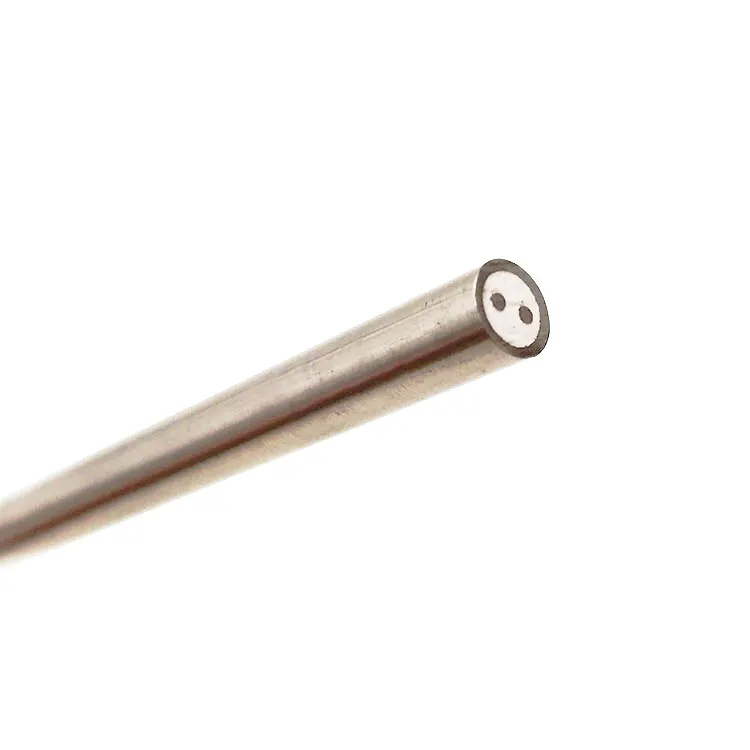

Outer Sheath Protection
The outer sheath of S-Type MI thermocouple cables is often made of metal materials, such as stainless steel or Inconel, providing additional protection against mechanical damage, corrosion, and high temperatures. This sheath helps ensure the integrity of the cable in industrial environments where it may be exposed to physical wear and tear.

Applications of S-Type MI Thermocouple Cable
S-Type MI thermocouple cables are utilized in a wide range of scientific and high-accuracy applications where precise temperature measurements are crucial. Below are some of the most notable applications:

1. Scientific Research Laboratories
S-Type MI thermocouple cables are extensively used in scientific research laboratories, where high-accuracy temperature measurement is essential for experiments involving high temperatures or precise environmental control. These cables are ideal for:

High-Temperature Testing: S-Type thermocouples provide accurate temperature readings in research involving high heat, such as materials testing, combustion research, or physical chemistry experiments.
Cryogenics and Low-Temperature Studies: The stability of S-Type thermocouples also makes them suitable for low-temperature applications, such as cryogenics, where precise temperature control is necessary for experiments in extreme cold environments.
2. Metallurgical Industry
In the metallurgical industry, temperature plays a key role in processes such as smelting, alloy production, and heat treatment. The ability to precisely monitor temperature is vital for ensuring product quality and process efficiency. S-Type MI thermocouple cables are used in:

Furnaces and Kilns: Accurate temperature measurements are crucial for controlling furnace temperatures and ensuring that metal alloys are processed at the correct temperatures.
Steel and Aluminum Production: In high-precision processes such as steelmaking, S-Type thermocouples are used to monitor and control the temperature of molten metals and during heat treatments.
3. Aerospace and Aviation
The aerospace and aviation industries require high-accuracy temperature measurements for the development and testing of components exposed to extreme conditions. S-Type thermocouples are widely used in:

Engine Testing: S-Type thermocouples provide the temperature data required to assess the performance and safety of engines under extreme operating conditions.
Material Testing: The aerospace industry relies on accurate temperature measurements when testing materials for use in aircraft and spacecraft, ensuring that they can withstand the high thermal stresses experienced during flight.
4. High-Precision Manufacturing
In high-precision manufacturing, such as semiconductor production and precision machining, accurate temperature control is essential for maintaining product quality. S-Type MI thermocouple cables are employed in:

Heat Treatment of Components: These thermocouples help monitor and control temperatures during processes like annealing, hardening, and tempering, which are crucial for ensuring the material properties of the finished product.
Laser Processing: S-Type thermocouples are used to measure temperature in laser processing applications, where precise temperature control is necessary for optimal material manipulation.
5. Nuclear Research and Power Generation
In nuclear research and power generation, high-accuracy temperature measurement is critical for maintaining safe and efficient operations. S-Type MI thermocouple cables are used for:

Reactor Temperature Monitoring: These cables are used to monitor the temperature within nuclear reactors, providing real-time data to ensure optimal operating conditions and prevent overheating.
Safety Systems: S-Type thermocouples play a vital role in nuclear power plant safety systems, ensuring that temperatures are within safe operational limits during power generation.
Meeting the Needs of Users in High-Accuracy Applications
Users in scientific and high-accuracy applications require thermocouples that offer consistent and precise temperature measurements. S-Type MI thermocouple cables (PtRh10-Pt) meet these needs by providing the following key benefits:

1. High Accuracy and Stability
The combination of platinum-rhodium and platinum ensures that the S-Type thermocouple provides stable and accurate temperature measurements even in challenging conditions. This is essential for industries like aerospace, research, and metallurgy, where precise temperature data is critical for ensuring optimal performance.

2. High-Temperature Performance
S-Type MI thermocouple cables are designed to withstand high temperatures (up to 1600°C or 2912°F), making them ideal for applications in extreme heat environments. This high-temperature capability ensures that these thermocouples can operate effectively in research and industrial applications that require monitoring in high-heat conditions.

3. Long-Term Durability
S-Type MI thermocouple cables are built to last, with a long lifespan and resistance to wear and tear. The high-quality materials used in these cables ensure that they continue to deliver reliable performance over time, even in harsh environments.

4. Minimal Drift and Interference
S-Type thermocouples are known for their minimal drift, ensuring that temperature measurements remain consistent over time. This is essential in research and manufacturing environments, where even small temperature variations can affect the outcome of experiments or production processes.

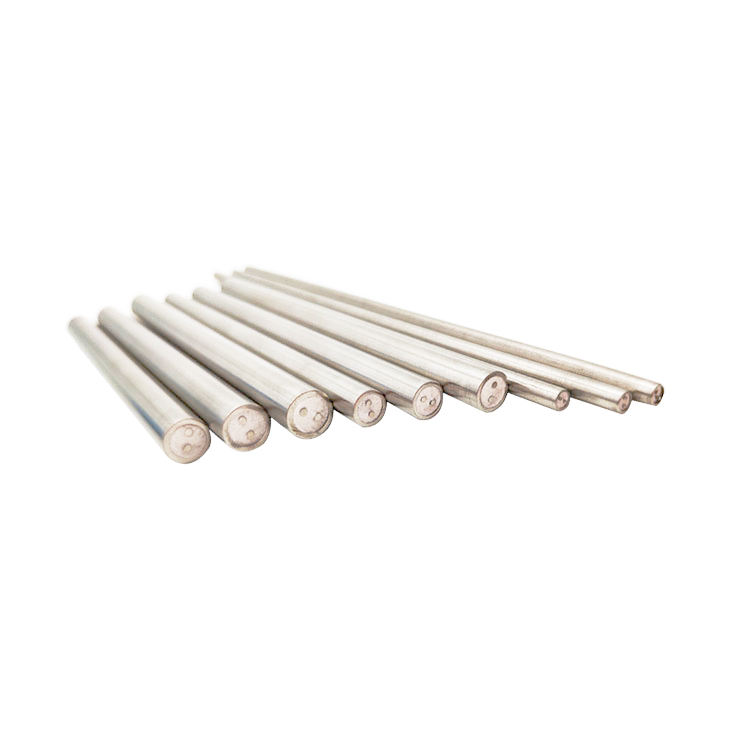

5. Customization for Specific Applications
S-Type MI thermocouple cables can be customized to meet the specific requirements of various applications. Whether it’s the length of the cable, insulation thickness, or the type of sheath used, these cables can be tailored to meet the unique needs of different industries and high-accuracy applications.
