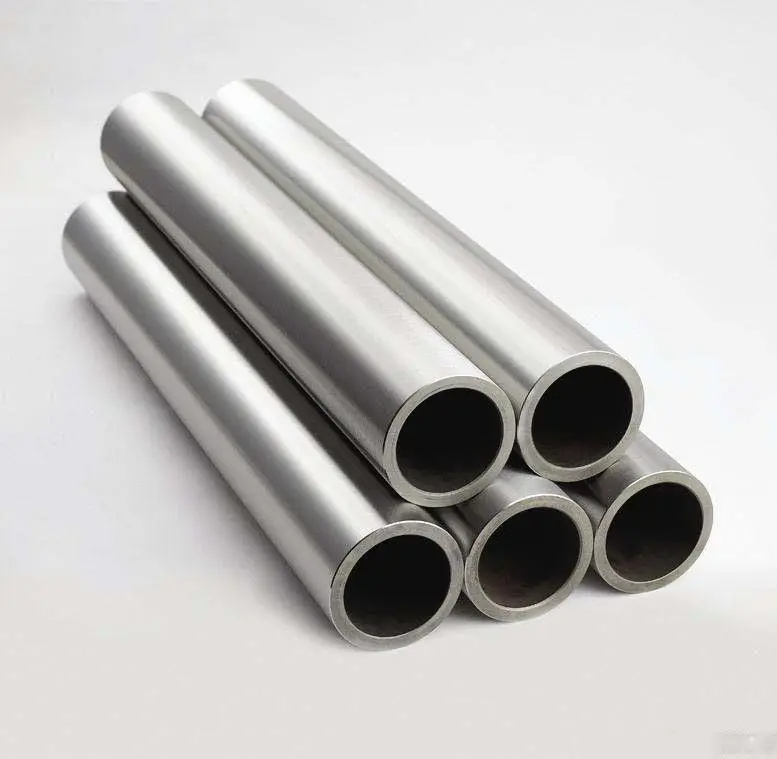

Inconel 625 Pipe – Unmatched Resistance to Corrosive & High-Pressure Environments

Inconel 625 is a high-performance nickel-based alloy known for its outstanding corrosion resistance, exceptional strength, and excellent weldability. Inconel 625 pipes are widely used in industries that demand superior resistance to extreme temperatures, high pressures, and aggressive chemical environments, such as marine, chemical processing, and aerospace applications.

Material Overview

Inconel 625 is primarily composed of nickel (58% min), chromium (20-23%), molybdenum (8-10%), and niobium (3.15-4.15%). This unique composition provides superior oxidation resistance, excellent mechanical strength, and outstanding fatigue and thermal fatigue resistance, making it ideal for high-pressure and highly corrosive environments.

Applications

Due to its superior corrosion resistance and durability, Inconel 625 pipes are extensively used in:

• Marine Industry: Used in seawater piping systems, heat exchangers, and offshore oil and gas platforms due to its exceptional resistance to saltwater corrosion and biofouling.

• Chemical Processing: Ideal for reactor vessels, acid handling systems, and heat exchangers that deal with highly corrosive substances.

• Aerospace Industry: Utilized in jet engine exhausts, turbine components, and afterburner systems where high strength and oxidation resistance are required.

• Power Generation: Applied in nuclear reactors, superheater tubing, and steam pipelines that operate under extreme heat and pressure.

• Oil & Gas Industry: Found in downhole tubing, riser pipes, and process piping in environments with high hydrogen sulfide (H₂S) and carbon dioxide (CO₂) exposure.

Grades and Specifications

Inconel 625 pipes are manufactured according to international standards to ensure high-quality performance:

• ASTM B444 / ASME SB444: Covers seamless pipes and tubes for high-temperature and corrosion-resistant applications.

• ASTM B705 / ASME SB705: Covers welded pipes made from nickel-chromium-molybdenum-columbium alloys.

• ASTM B446 / ASME SB446: Covers bars and rods used in pipe production.

• UNS N06625: The unified numbering system (UNS) designation for Inconel 625.

Available in various diameters, wall thicknesses, and surface finishes, Inconel 625 pipes can be customized to meet specific industry requirements.

Manufacturing Process

The production of Inconel 625 pipes involves several key steps to ensure optimal mechanical properties and performance:

1. Melting and Alloying: The raw materials are melted using vacuum induction melting (VIM) or electric arc furnaces to achieve precise chemical composition.

2. Extrusion and Piercing: The alloy is hot-worked into seamless pipes, ensuring uniformity and mechanical integrity.

3. Cold Working and Sizing: Pipes undergo cold drawing and precision sizing to achieve the required dimensions and mechanical properties.

4. Heat Treatment: Solution annealing enhances oxidation resistance, creep strength, and mechanical stability.

5. Surface Finishing: Various treatments such as pickling, polishing, and coating improve corrosion resistance and durability.

6. Testing and Quality Control: Pipes undergo rigorous testing, including tensile strength, impact resistance, non-destructive testing (NDT), and corrosion resistance evaluation.

Meeting User Demands

Manufacturers of Inconel 625 pipes prioritize high-quality production to meet customer needs by:

• Customization: Offering pipes in various sizes, wall thicknesses, and finishes for specific industrial applications.

• Superior Corrosion & Pressure Resistance: Ensuring durability under extreme mechanical loads and corrosive environments.

• Compliance with International Standards: Guaranteeing product reliability, consistency, and safety.

• Extended Service Life: Reducing maintenance and replacement costs due to superior material performance.
